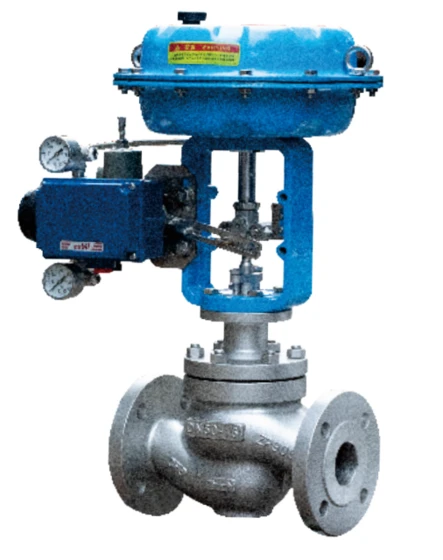

Pneumatic regulating Single-Seat metal globe valve — DN15 to 300
Key Highlights
Available Variants
Technical Specifications
| Parameter | Value |
|---|---|
| No attributes available | |
Product Description
With the development of industrial automation, regulating valves play a pivotal role in the automation process. They possess both static and dynamic characteristics. The static characteristic refers to the flow characteristic of the valve, which is influenced by factors such as valve's size, valve core & seat structure and the actuator type, valve positioner, inlet pressure and outlet pressures, as well as fluid properties. On the other hand, the dynamic characteristic is controlled by the actuator and positioner. Regulating valve belong to the control valve series and primarily serve to regulate medium(fluid) pressure, flow rate, and temperature.
Shipping Information
Seller Information
Trust & Safety
Refrigeration Regulating Valve — Welding connection
Pressure Regulating Valve — Adjusting spring and screw
Flow Regulating Valve — Standard features 25mm size
