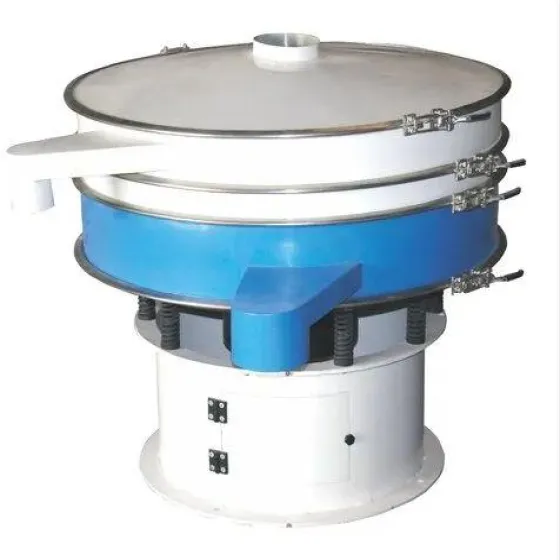

Material Grade SS 316, Capacity 100 kgh - 3000 kgh Vibro Sifter Machine, Power 08 kw - 3 kw

Mmpe vibro sifter works on gyro principle. The required gyratory motion is obtained from specially designed gyro motor, Which is fitted underneath the vibrating assembly. The complete vibrating assembly is isolated from the base utilizing specially designed rugged springs. This offering is accomplished by vibrating the screens in three different planes along the vertical axis by means of a specially designed vibratory motor having off centred weights at the first and last parts conclusion of the motor shaft. The top weight causes vibration in the horizontal plane which causes the fabric to move across the screen towards the periphery. The lower weight acts to tilt the machine which causes vibration in the vertical tangential axis. The angle of lead of the lower weight with in connection with the upper weight provides variable management of the screening pattern. Thus the material moves across the screens and also in the vertical and tangential planes enabling maximum screening. The sifter unit consists of specially designed vibratory motor to run on 400 / 440v, With adjustable eccentric weights, 50 cycles suitable hp, Electric supply, 3 phase at the top and bottom of the motor shafts mounted vertically in the heart of of the base plate of screening unit. Screening unit consists of ss 316 screen sandwiched between ss 316 hopper and bowl by means of of special clamp is clamped, Gasket. This, In turn to the base plate. Rugged springs placed over the circular motor base amplify the oscillation and concurrently time restrict the vibration when shifted to the floor. Other detail, Noiseless, Maintenance free & high speedsOffered in a selection of models providing screening diameter of 12, 20, And 30 thirty-six 48, 72 etcportable and compact electric power requirement less than another machine of the kind in the industries & lower energy. Consumption compared to the reciprocating vibratory systemstandard machine is with tefc motor explosion proof/flame proof motor materialall parts that engage and screen of ss 316 aisi stainless steel material. Easy dismantling and cleaning facility for contact parts. A extensive selection of screen sizes 4, 300 mesh. Double & triple deck screens with outlet and hopper for bottom deck accessible through request
