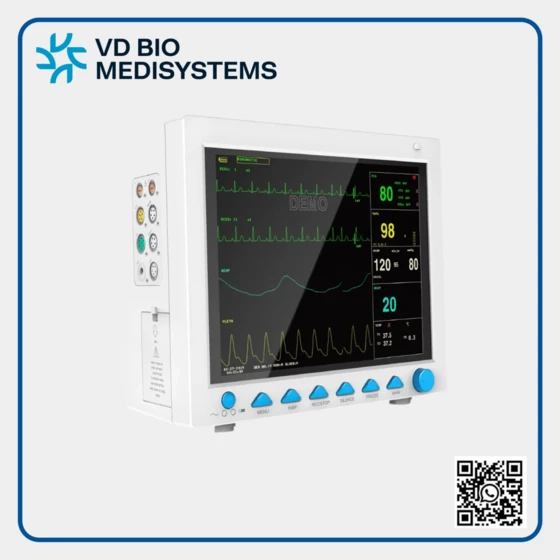

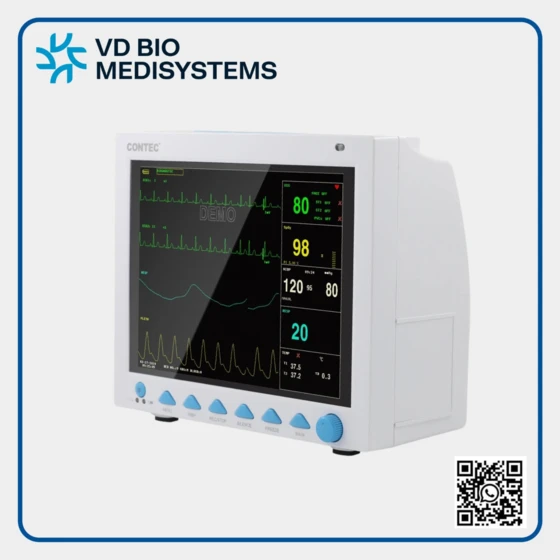

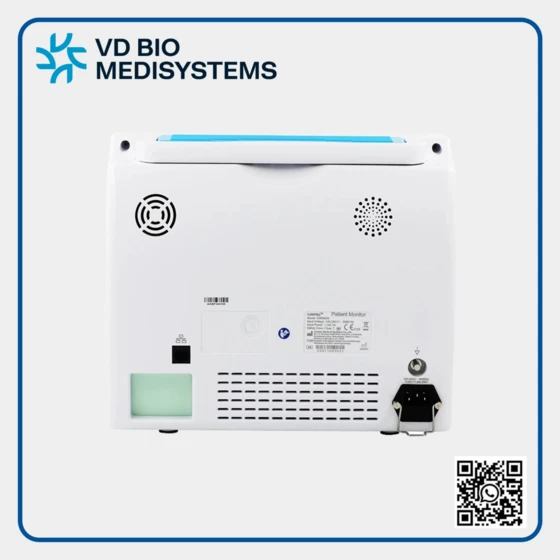

Contec 5 Para Monitor CMS8000 — Multipara Monitor
Active
Premium
Key Highlights
₹ 33000.00
per Pc
Available Variants
Technical Specifications
| Parameter | Value |
|---|---|
| No attributes available | |
Product Description
Available Variants and Sizes of Contec CMS8000 Multipara Monitor
Functions
• Standard parameters: ECG, RESP, SpO2, PR, NIBP, dual-channel TEMP
• ECG Heart rate(HR)
• ECG waveform
• Arrhythmia and ST-segment analysis
• RESP Respiration rate(RR)
• Respiration waveform
• SpO2 Oxygen saturation(SpO2)
• Plethysmogram(PLETH) waveform
• Pulse rate(PR)
• Bar graph
• NIBP Systolic pressure(SYS), Diastolic pressure(DIA), Mean pressure(MEAN)
• TEMP T1, T2, TD
• IBP(optional) CH1：SYS，DIA，MAP
• CH2：SYS，DIA， MAP
• IBP waveform
• CO2 EtCO2 Optional
• InsCO2:Inspired Minimum CO2
• AwRR: Air Way Respiration
• It has abundant functions, such as audible and visual alarms, trend data storage and output, NIBP measurement, alarm event marking, and drug concentration calculation, etc.
Features
• 12.1” TFT color LCD, multi-language interface
• Fanless design, quiet, energy-saving, and clean, which reduces the possibility of cross-infection.
• All-round monitor for adult, pediatric, and neonate.
• With the standard interface, oxygen graph, trend graph, big character interface, and view bed, convenient to observe.
• Finish all operations with keys and knobs.
• Maximum 8-channel waveform synchronous display.
• Display 7-lead ECG waveform on one screen, cascade ECG waveform display
• Adopt digital SpO2 technology, anti-motion, and anti-ambient light interference, and measurement can be performed under the circumstance of weak filling.
• Heart rate variability (HRV) analysis function
• NIBP measurement mode: Manual/AUTO/STAT, storage for 4800-group NIBP data.
• Review for 71 alarm events of all parameters and 60 arrhythmia alarm events.
• Drug concentration calculation and titration table functions.
• One-touch printing of trend graph
• Connect to Central Monitoring System by 3G, Wi-Fi, or wired mode.
• AC/DC, built-in rechargeable lithium battery achieves uninterrupted monitoring.
• Anti-high frequency surgical unit, defibrillation-proof (special leads are necessary).
Performance
▲ECG
• Lead mode: 3-lead or 5-lead
• Lead selection: I, II, III, aVR, aVL, aVF, V
• Waveform: 5-lead, dual-channel
• 3-lead, single-channel
• Gain: 2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV, 40mm/mV
• Scan speed: 12.5mm/s, 25 mm/s, 50 mm/s
HR:
• Measurement and alarm range: 15～350 bpm
• Accuracy: ±1 % or ±1 bpm, whichever is greater
• Alarm accuracy: ± 2 bpm
• Resolution: 1 bpm
• ST-segment monitoring:
• Measurement and alarm range: -2.0 mV ～ +2.0 mV
• Accuracy: -0.8 mV～+0.8 mV ±0.04 mV or ±10%, whichever is greater
• Other range: unspecified
• Arrhythmia analysis: ASYSTOLE, VFIB/VTAC, COUPLET, BIGEMINY, TRIGEMINY, R ON T, VT>2,
• PVC, TACHY, BRADY, MISSED BEATS, PNP, PNC
• Pacemaker: yes
▲RESP
• Method: R-F(RA-LL) Impedance
• Respiration rate:
• Measurement and alarm range: 0～150 rpm
• Resolution: 1 rpm
• Measurement accuracy: ±2 rpm
• Alarm accuracy: ±3 rpm
• Apnea alarm: 10～40s
• Scan speed: 6.25 mm/s, 12.5 mm/s, 25 mm/s
