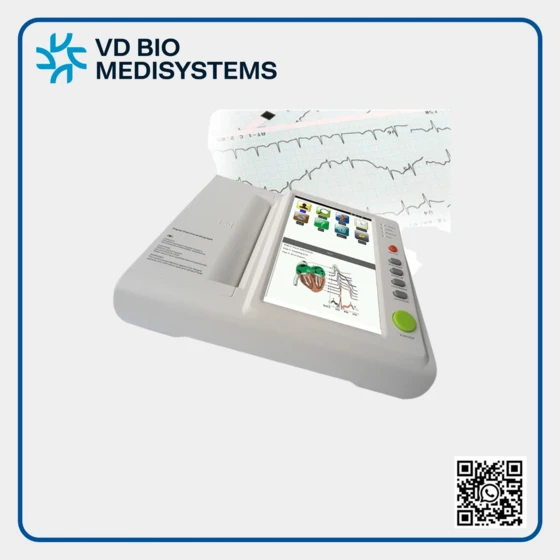

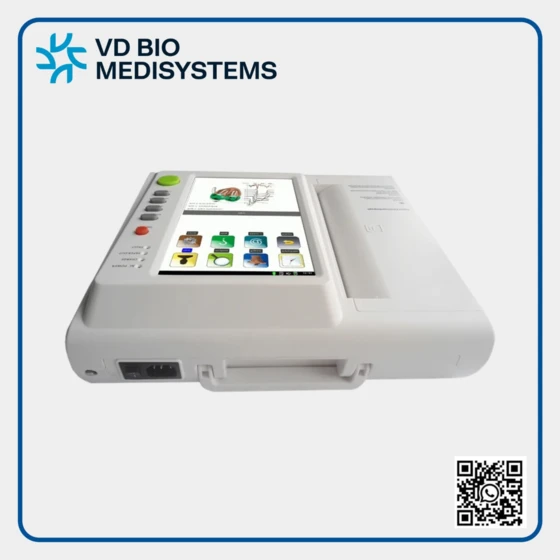

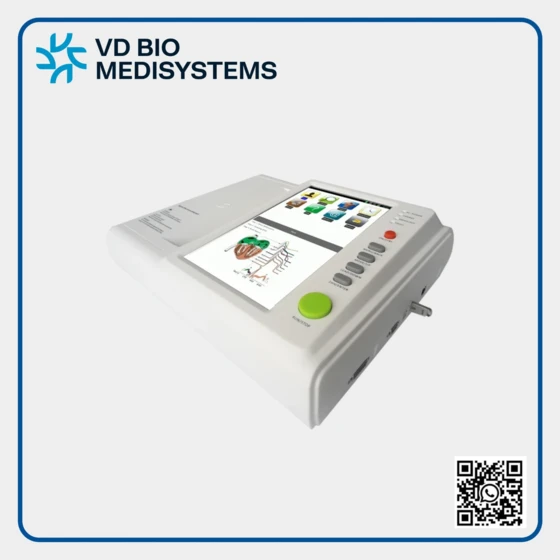

VD Bio Medisystems 12 Channel Ecg VD-1200E — Ecg Machine
Active
Premium
Key Highlights
$ 544.67
per Pc
Available Variants
Technical Specifications
| Parameter | Value |
|---|---|
| No attributes available | |
Product Description
Optimal Usage and Maintenance for Continuous ECG Monitoring in Clinics
General Features
• 12 Lead ECG Synchronous Sampling System
• Modern in Design, Light in Weight, Compact in Size
• Simultaneously Acquisition of 12 Lead, Full Screen Display of 12 Channel ECG Waveforms
• Thermal Printer With 216mm Print Paper, Synchronization Print, it is High Resolution Thermo Sensitive Printer and Thermal-Array (8 Dots/mm), You Should not Adjust Anything Frequency Response is up to 150HZ
• 10.2" Colour Touch-Screen, Both Push-Button and Touch Operation
• Sensitive Filters of ADS, HUM and EMG
• Automatic Measurement, Calculation, Analysis, Waveform Freezing
• Support USB Flash Disk & SD Memory
• Data Transmitting to PC via RS232/USB (ECG Workstation Software)
• Patient's Information can be Input
• Historical Data can be Reviewed and Printed
• The Machine can Store Over 500 ECG Reports in its Built-in Flash
• Built-in Rechargeable Lithium-ion Battery, AC/DC Power Conversion
• Sleep Mode to Save Energy and Extend LCD Life
• The Device can Record Real Time Clear and Exact 12 Channel ECG Waveform and Remark Continually, the Remark Includes: Lead Sign, Sensitivity, Paper Speed, Filter State, etc.
• Portable Design with Hidden Handle, Convenient to Carry
• Lead Off & Lack Off Paper Detection Function
• 7 Level Printing Thickness Adjustable
• Adapt To 110-230v 50/60Hz AC Power Supply
Technical Specification
• Input Mode: Floating and Defibrillation Protection
• Voltage Tolerance: +500mV
• Frequency Response: 0.05Hz~ 150Hz (-3dB~+0.4dB)
• CMRR: 2100dB (With AC filter) || Time Constant: > 3.2s
• Patient Leak Current: <10uA>50M | | Resolution: 12-bit/1000 Hz
• Recording Mode: High Resolution Thermal Printing System
• Auto Record: Set Record According to Auto Record Format and Mode, Auto Switching Leads, Measuring and Analysing
• Manual Record: Set Record According to Record Format, Manually Switching Leads
• Filter: AC, ECG Filter | | Drift Filter: Anti-Drift System
• Paper Speed Auto: 25, 50mm/s +3%
• Power Supply AC: 100V ~ 240V(50/60Hz), DC: 11.1V/3800mAh Rechargeable Lithium Battery
• Fuse Specification: AC Time Lag Fuse (ф5x20mm), T1.6AL 250V
• Dimension: 360mm x 250mm x 68 mm
