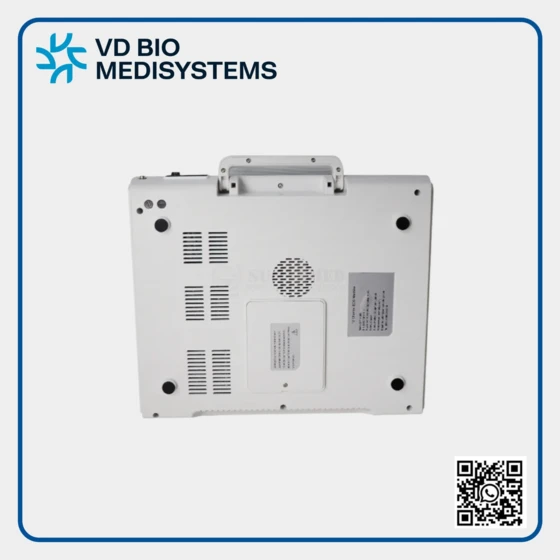

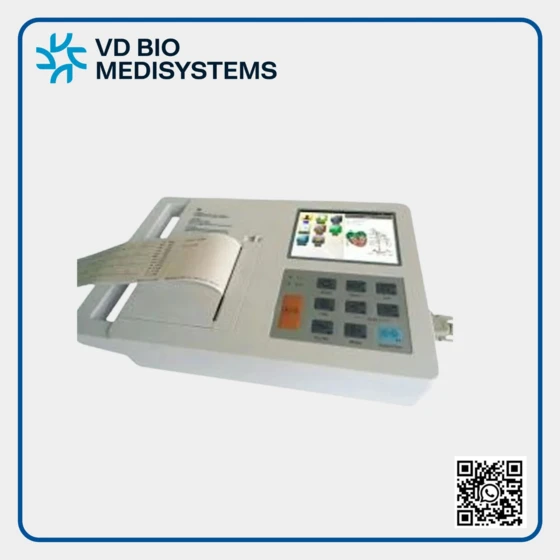

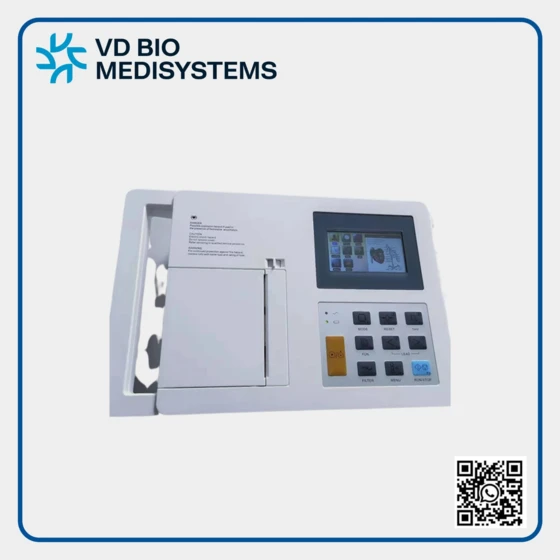

VD Bio Medisystems 3 Channel Ecg VD-300E — Ecg Machine
Active
Premium
Key Highlights
$ 293.22
per Pc
Available Variants
Technical Specifications
| Parameter | Value |
|---|---|
| No attributes available | |
Product Description
Leading Provider of Advanced 3 Channel ECG Machines in Surat
General Features
• 12 Lead ECG Synchronous Sampling System
• Thermal Printer With 80mm Print Paper, Synchronization Print
• 5.7" Colour Touch-Screen, Both Push-Button and Touch Operation
• Automatic Measurement, Calculation, Analysis, Waveform Freezing
• Support USB Flash Disk & SD Memory
• Data Transmitting to PC via RS232/USB
• Patient's Information can be Input
• Historical Data can be Reviewed and Printed
• Built-in Rechargeable Lithium-ion Battery, AC/DC Power Conversion
• Sleep Mode to Save Energy and Extend LCD Life
• Portable Design with Hidden Handle, Convenient to Carry
• Lead Off & Lack Off Paper Detection Function
• 7 Level Printing Thickness Adjustable
Technical Specification
• Input Mode: Floating and Defibrillation Protection
• Voltage Tolerance: +500mV
• Frequency Response: 0.05Hz ~ 150Hz (-3dB~+0.4dB)
• CMRR: ≥100dB (With AC filter) | | Time Constant: ≥ 3.2s
• Patient Leak Current: <10 A | | Calibration Voltage: 1mV +3%
• Sensitivity: 5, 10, 20 mm/mV +5%, Standard Sensitivity: 10mm/mV +2%
• Noise Level: <15uVp-p || Input Circuit Current: ≤ 0.1 uA
• Input Impedance: ≥50M Resolution: 12-bit/1000Hz
• Recording Mode: High Resolution Thermal Printing System
• • Auto Record: Set Record According to Auto Record Format and Mode, Auto Switching Leads, Measuring and Analysing
• Manual Record: Set Record According to Record Format, Manually Switching Leads
• Filter: AC, ECG Filter | | Drift Filter: Anti-Drift System
• Paper Speed Auto: 25, 50mm/s +3%
• Power Supply AC: 100V ~ 240V(50/60Hz), DC: 11.1V/3800mAh Rechargeable Lithium Battery
• Fuse Specification: AC Time Lag Fuse (O5×20mm), T1.6AL 250V
• Dimension: 360mm x 250mm x 68mm
